Volvo CE Launch New Heavyweight Excavators

Volvo Construction Equipment have launched two new excavator models into the range to compete in the 50-tonne class sector. I received this information from Volvo CE last week, but it had gone to my old email address, but I’m delighted to be able to share it this week.

These all-new machines are also a new size class for Volvo CE, which, according to the manufacturer offer a 25% boost in fuel efficiency and include a range of advanced features to also deliver a 20% boost in productivity.

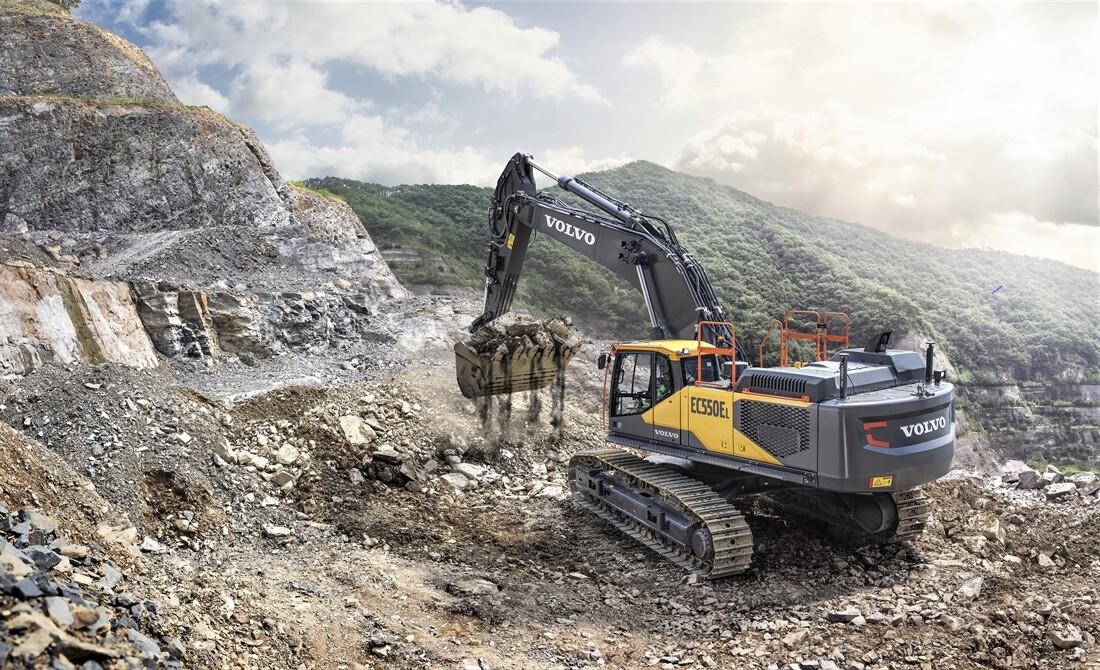

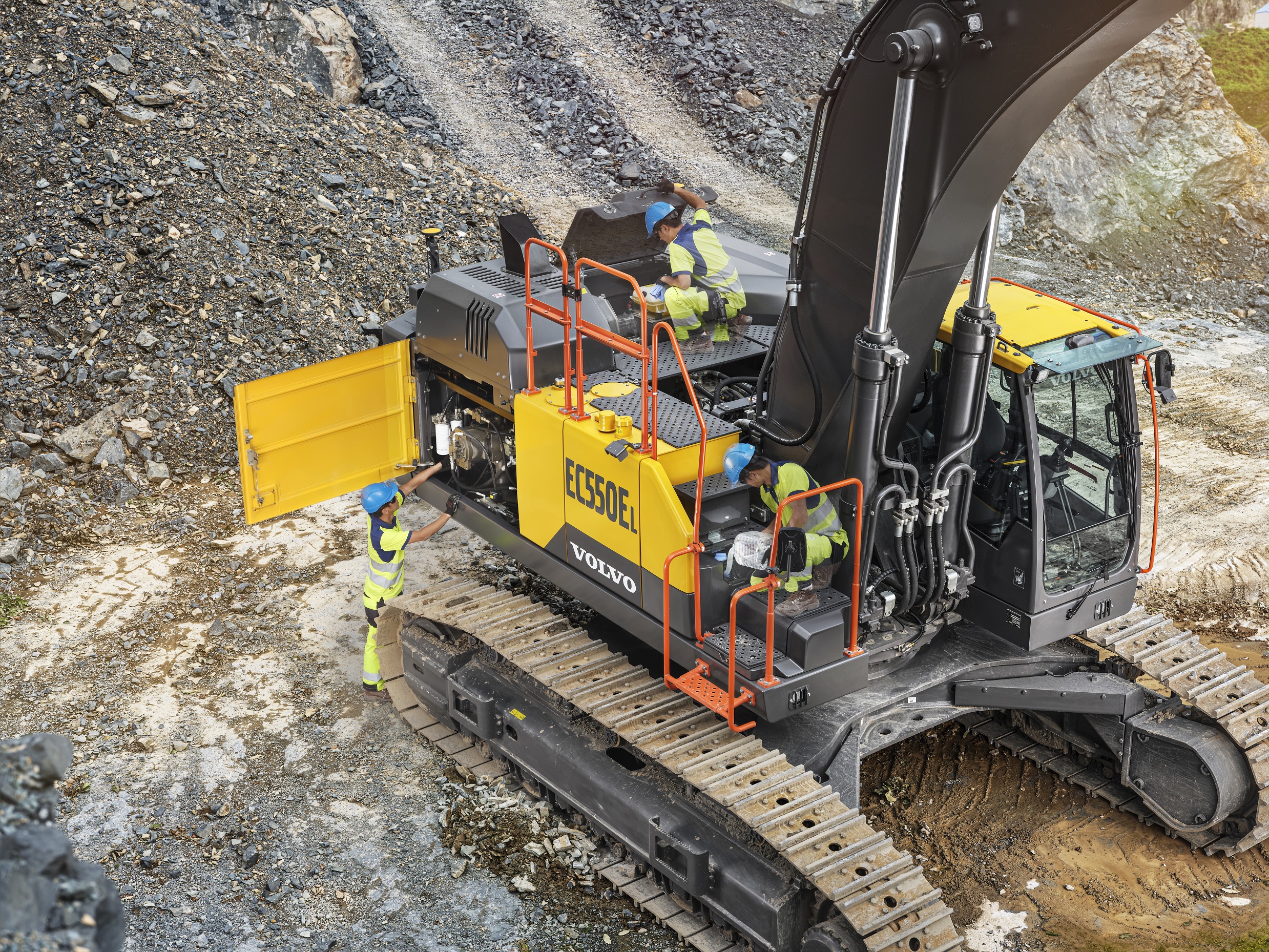

Volvo is aiming high with this launch revealing not just one, but two 50-ton machines – the EC530E and EC550E – aimed at those who are engaged in heavy duty digging, mass excavation and large-scale site preparation.

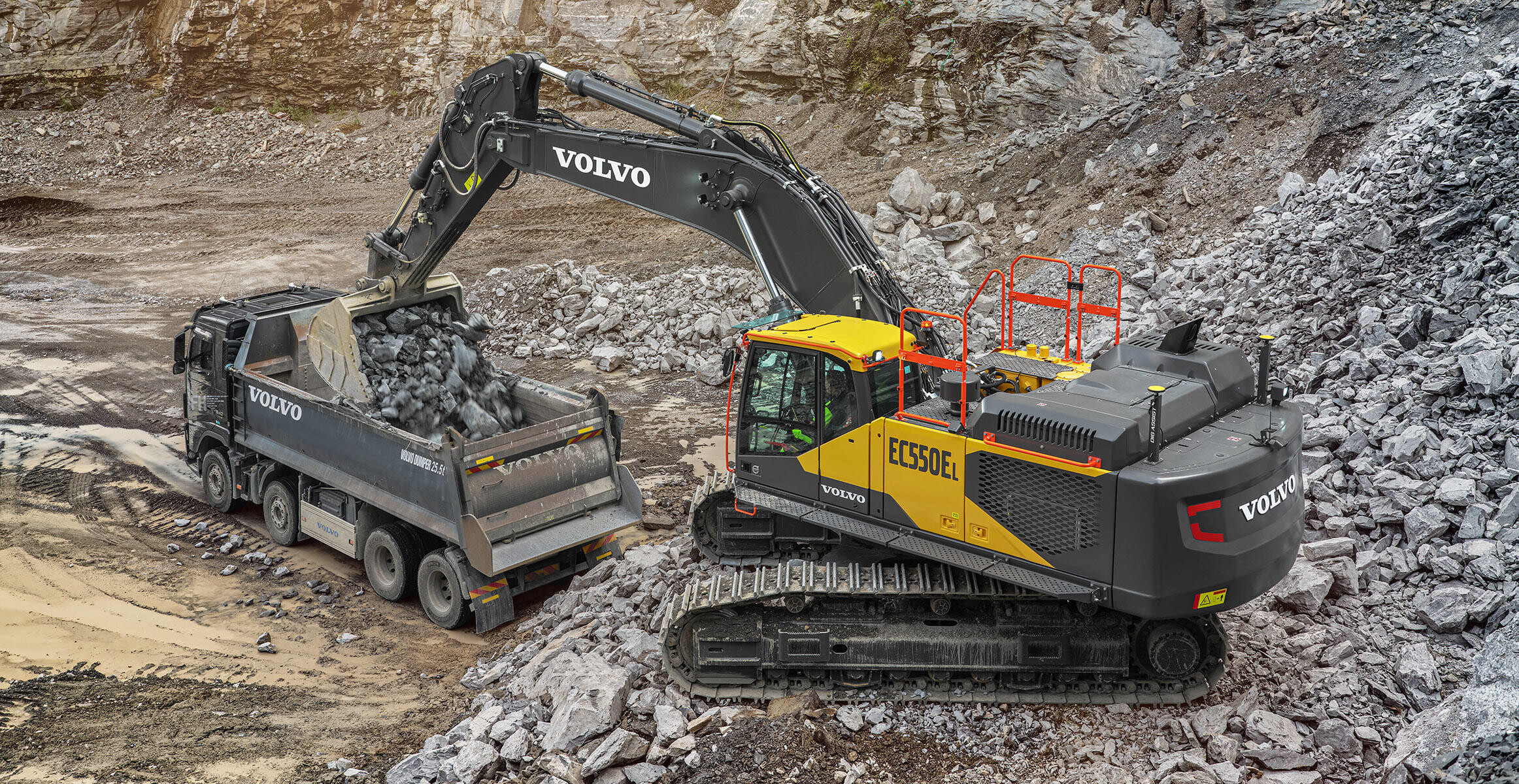

Delivering digging and lifting forces normally found in 60-ton machines, these two excavators are said to feature the highest engine power in the class, providing high tractive force and swing torque. When coupled with large buckets, the EC530E and EC550E are perfectly suited to filling articulated haulers in the 30-40-ton class – requiring fewer passes to load them, thereby reducing cycle times. This combination can boost productivity by an impressive 20%.

These are 50-ton machines with all the characteristics of bigger equipment. A super-rigid reinforced undercarriage has the durability and strength normally associated with a 60-ton class excavator. This is supported by equally sturdy lower and upper frames. The EC550E undercarriage has a long and wide lower frame, giving it extra stability when working with heavier loads. The undercarriage on the EC530E, meanwhile shares the same transportation dimensions (and loading convenience) as Volvo’s 48-ton EC480E.

It is not just the undercarriage that’s tough – the boom and arm boast a larger pin size for added strength when the going gets tough.

A low emission Volvo D13J engine may be the heart of the EC530E and EC550E, but combined fuel efficiency – of up to 25% – is enabled thanks to these machines’ use of the very latest electro hydraulics system. It achieves this due to Independent Metering Valve Technology (IMVT) which, thanks to intelligent electronic control offers both more precise operation and efficiency than a traditional mechanically coupled hydraulic system.

Further efficiency is gained from engine pump optimization, which lowers engine speed while maintaining power, and improved hydraulic pipework layout. Put together, the EC530E and EC550E offer high levels of control and efficiency for all applications. The new system offers a range of smart functions, including creep mode (useful for precise lift-and-carry work) and optional Comfort Drive Control (CDC). CDC helps to reduce operator fatigue by allowing the excavator to be steered using the joystick rollers, instead of the pedals.

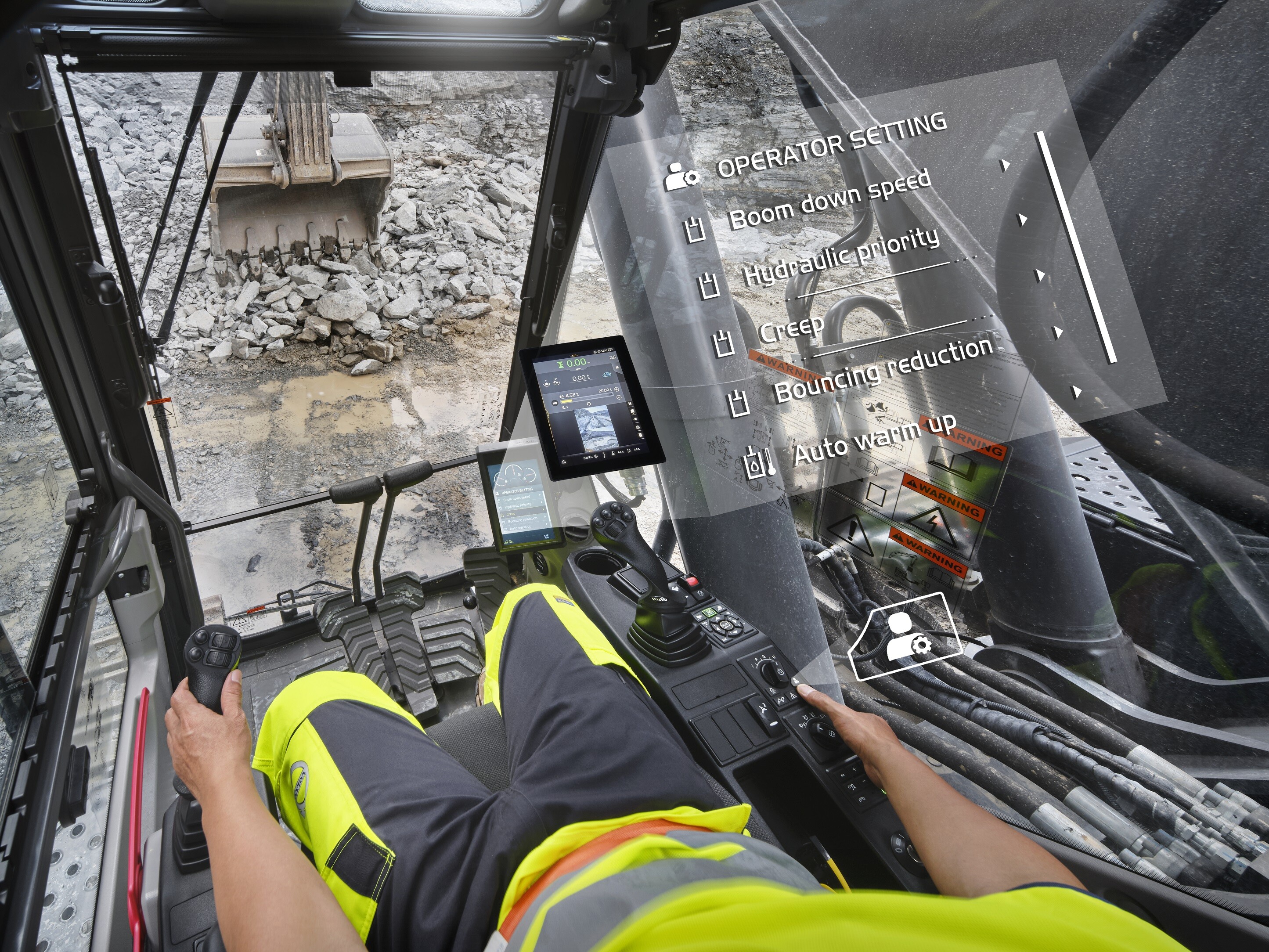

Operators can select several functions depending on the task at hand and their preferences. This includes boom/swing and boom/travel priority, which enables one function to take the lead over another. The boom-down speed can also be adjusted, giving optimum control for tasks that require extra precision. New boom-and-arm bouncing reduction technology lessens machine shock – a feature much appreciated by operators.

Operators are further assisted in their tasks by the optional Dig Assist apps – powered by the 10in. Volvo Co-Pilot tablet. These include 2D, In-Field Design and 3D software packages. On-Board Weighing is another useful feature, providing real-time information on bucket load (to ensure optimum fill) as well as recording material moved per pass, per shift or per day – providing invaluable productivity data.

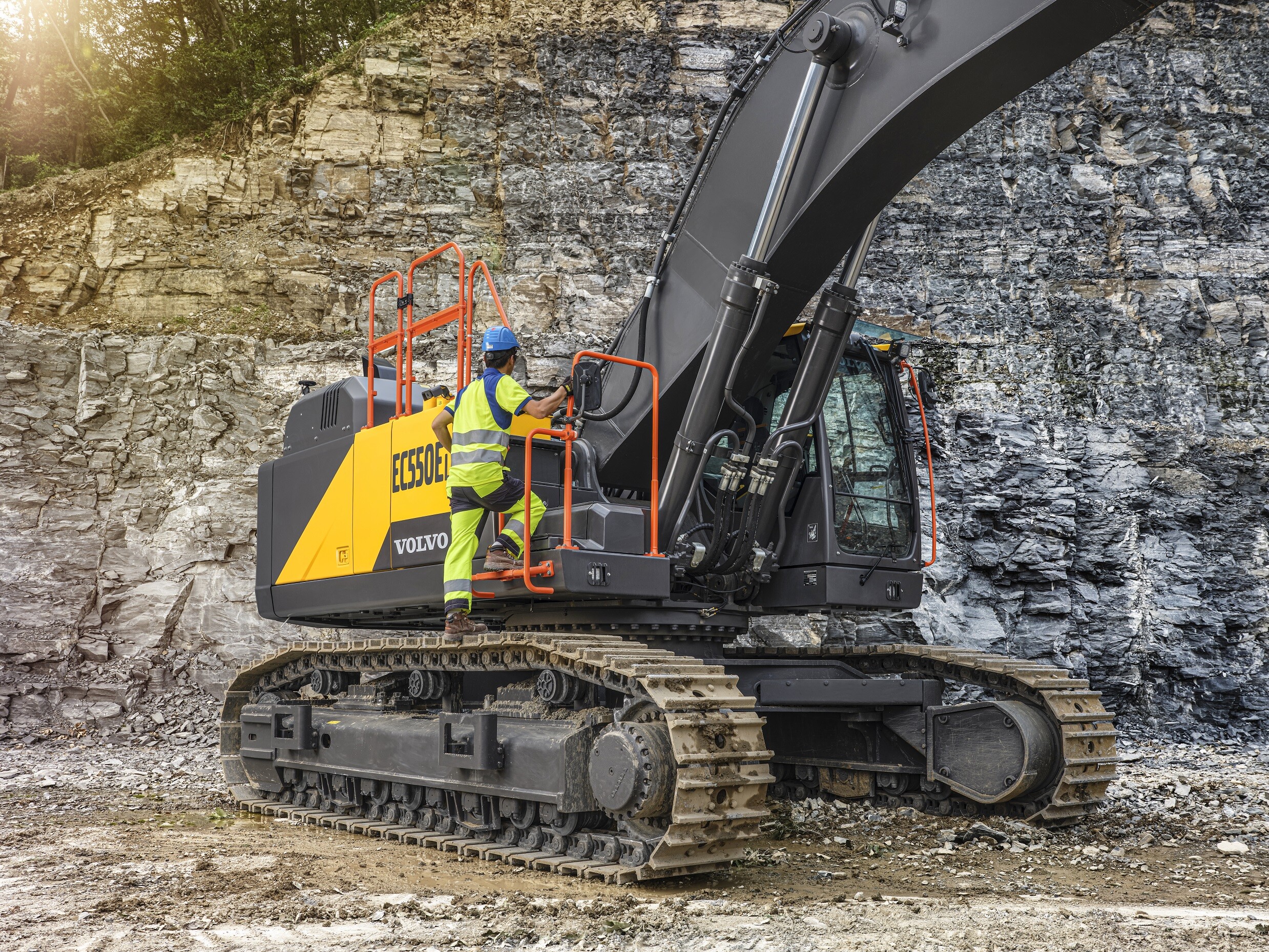

The Volvo Care Cab is a great place to spend the work day. Getting on board is safe and easy, thanks to bolted anti-slip steps and high visibility handrails. For easier transportation, an optional entrance step and walkway can be folded away.

Once seated, operators enjoy both a low noise and low vibration environment, safe in the knowledge that the cab is protected by ROPS structure that exceeds industry standards for this weight class. They are also presented with best-in-class visibility, a benefit improved further if optioned with a one-piece front window. Technology also plays a part here, thanks to rear and side cameras, along with the all-round Volvo Smart View option, especially useful when working in confined locations.
