by Kyle Molyneux | Thu 16 Jan 2020

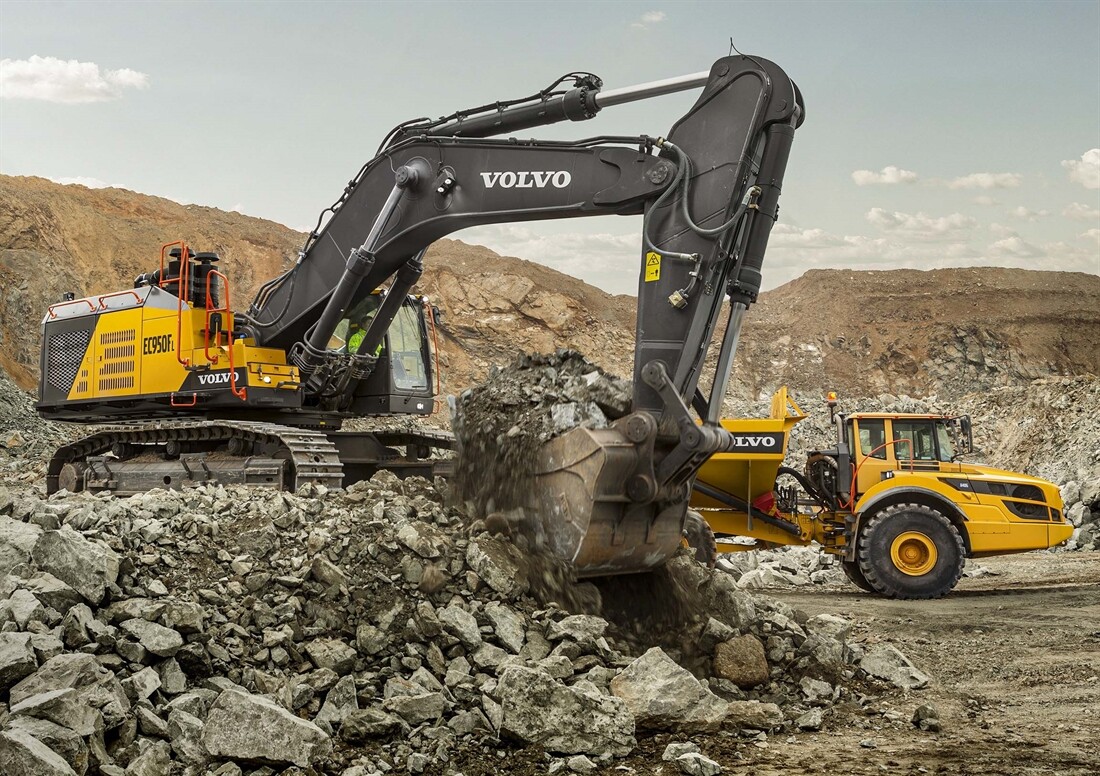

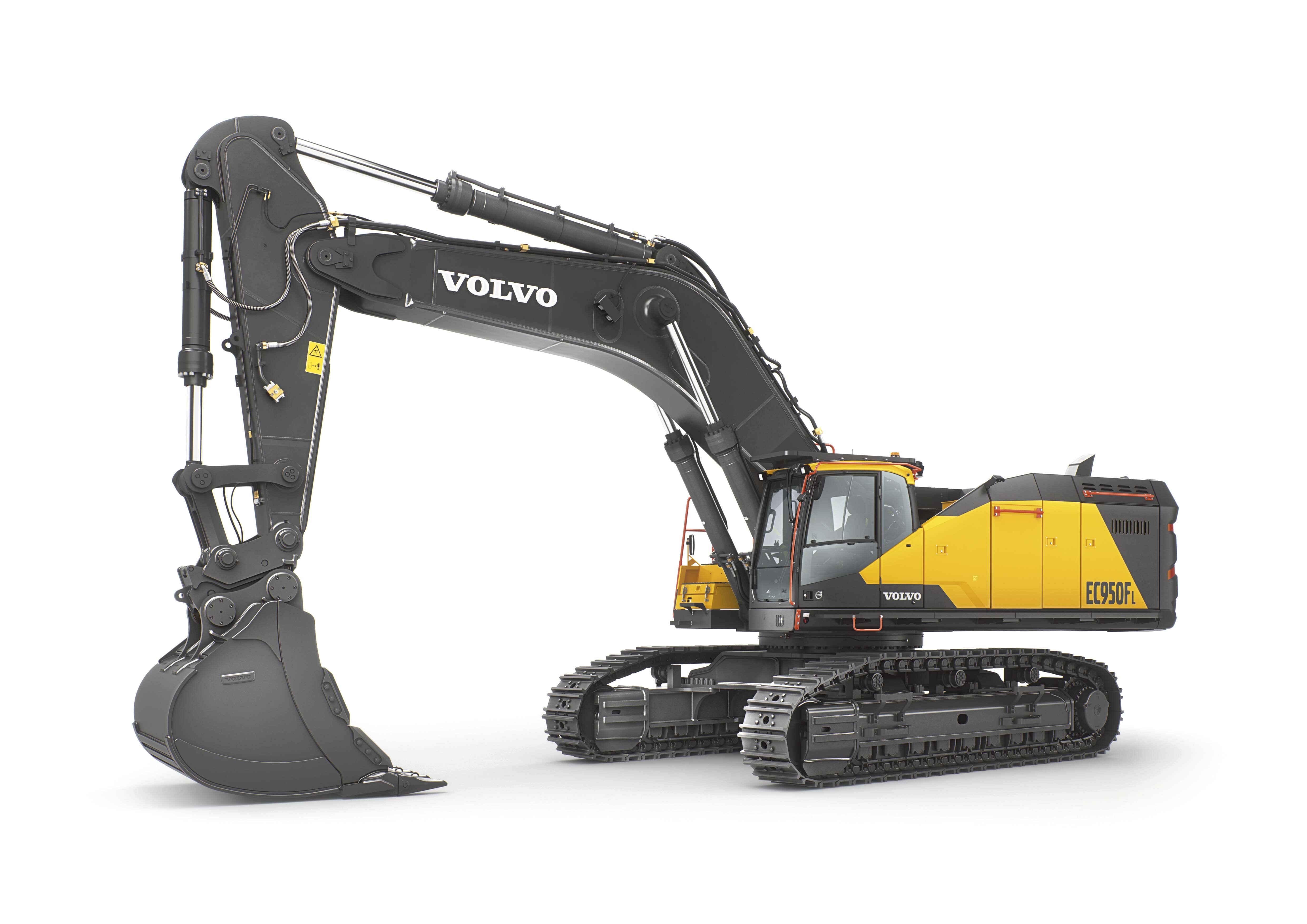

New 90-tonne Volvo excavator
The 90-tonne EC950F crawler excavator from Volvo Construction Equipment (Volvo CE) is equipped with a 603hp Volvo D16 engine that delivers high torque at low rpm and complies with the newest international emissions standards, this machine is designed for fast and efficient on-site production. The optimised hydraulics system increases pump power for fast and smooth operation, while the electro-hydraulic system controls on-demand flow and reduces internal losses in the hydraulic circuit. The EC950F also comes with a boom-swing priority valve and Eco Mode.
The 90-tonne excavator delivers a high bucket capacity for more tons per hour and can be fitted with a range of Volvo attachments, including General Purpose, Heavy-Duty, and Extreme-Duty buckets. When the application requires something more unique, Volvo can offer custom-built attachments. To boost machine versatility even further, the attachment management system can store settings for up to 20 different attachments, enabling the operator to pre-set hydraulic flow and pressure through the in-cab monitor.
For maximum control, all machine interfaces – including joysticks, keypad, and LCD monitor – are ergonomically positioned. Smart features such as the optional Dig Assist – powered by Volvo Co-Pilot – help the operator to dig more efficiently. FOG (Falling Object Guard) and FOPS (Falling Object Protective Structure) are optional, as are rear-view and side cameras, or Volvo Smart View, which provides 360-degree vision. Machine protection is provided by features that include a heavy-duty boom and arm, strong frame structure, heavy-duty underside plate and floating pins on the bucket connection, as well as optional full-length track guard.
For a prolonged bucket lifespan, Volvo offers a range of wear parts including segments, side cutters, shrouds, and teeth. When working with heavily compacted material the Pick Point tooth provides maximum penetration. To cut downtime to a minimum, the new Volvo Tooth System enables teeth changes in minutes: simply place, push and click. Essential maintenance points are also easily accessed via the wide-opening compartment doors using central and surrounding walkways.
Key stats for the Volvo EC950F…
- Operating weight: 91,275-94,810kg
- Bucket capacity: 3.9-7.0m3
- Lifting capacity: 34,900kg
- Max digging reach: 40ft 3in
- Max digging depth: 23ft 4in
- Breakout force: 95,318ft lb
- Tail swing radius: 15ft 4in
