New Bobcat TL25.60 telehandler plus S86 and T86 loaders

Bobcat has expanded the company’s next generation R-Series range of products with the launch of the new Super Compact TL25.60 telehandler and the new S86 and T86 compact loaders. As the smallest machine in the range, the new TL25.60 brings the number of rigid frame telehandlers from Bobcat for construction, rental and general handling to 11 models. The new S86 R-Series Skid-Steer Loader and T86 R-Series Compact Track Loader replace the previous 700 and 800 M-Series loaders and complete the current R-Series loader line-up.

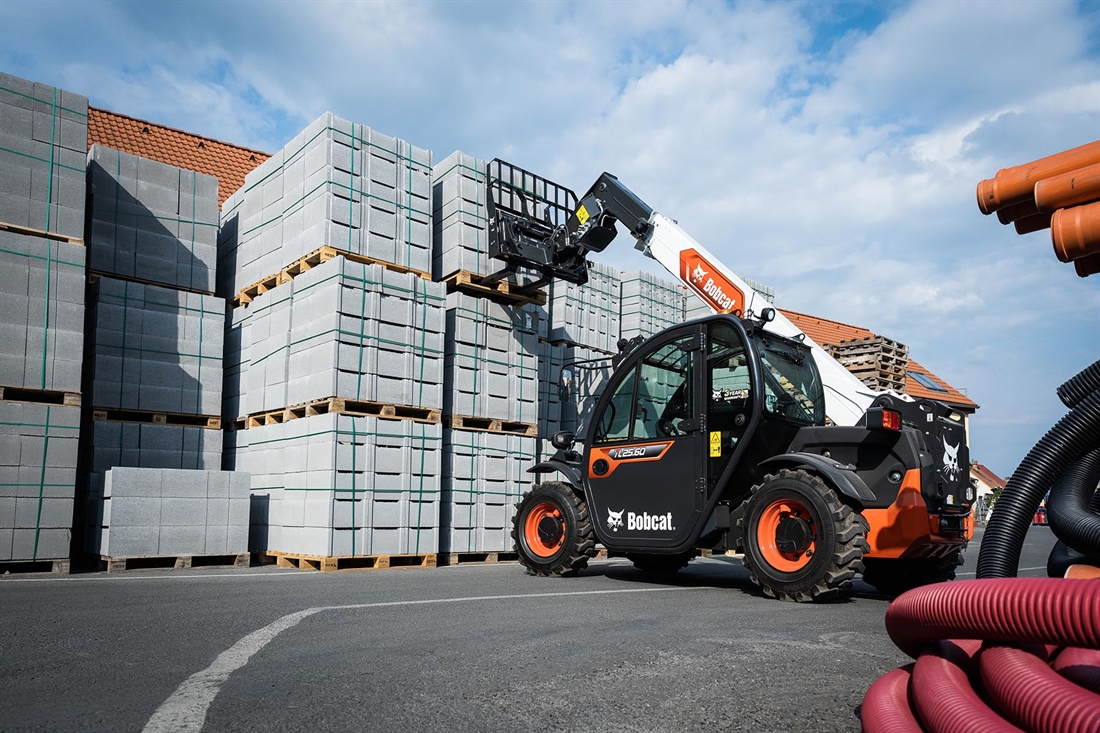

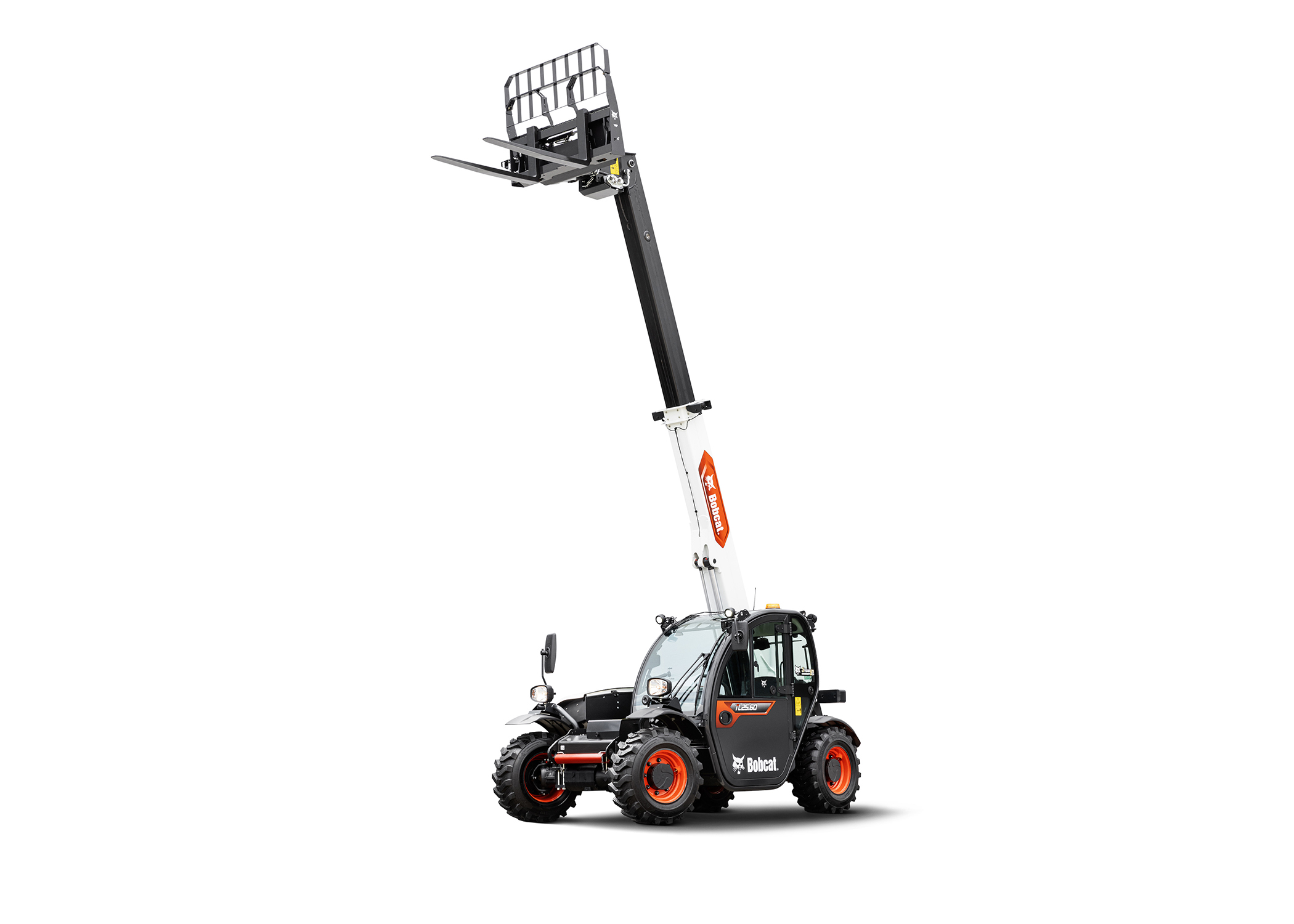

TL25.60 telehandler
The new TL25.60 telehandler has been designed for simplicity of use, excellent stability, optimum comfort and safe operation in any type of application. The TL25.60 is powered by a 75hp Bobcat Stage 5 engine. The machine has a rated operating capacity of 2,500kg, offers a maximum lift height of 5.91m and a maximum reach of 3.31m. The Bob-Tach carriage (manual or hydraulic) increases versatility by allowing the TL25.60 to utilise attachments designed for the Bobcat loader range.

Features of the cab include a new 5-inch LCD display, greater ease of use, lots of storage space, an air suspension seat, an optional tilting and telescopic steering column, and a door with 9-degree opening plus low entry step.

Like all Bobcat telehandlers, the new engine hood has been designed to maximise visibility on the right-hand side of the machine. Together with the new dashboard design in the cab and strong but slim cabin pillars, this provides excellent unobstructed visibility for the operator, reckons Bobcat.

The TL25.60 has an extra tough design with a robust frame and boom for working in every possible environment. The shielded design provides protection for hydraulic and electrical components (including the pipes, harness and transmission) and a steel plate protects the base of the machine. Like all Bobcat telehandlers, the TL25.60 has a box section layout and significant ground clearance for peace of mind.

The TL25.60 offers impressive control at any height thanks to the smooth hydrostatic transmission, hydraulic boom movements and flow sharing, ensuring all needs are met on job sites. Using the same main valve as the other models in the R-Series range, the TL25.60 offers the best cycle times on the market.

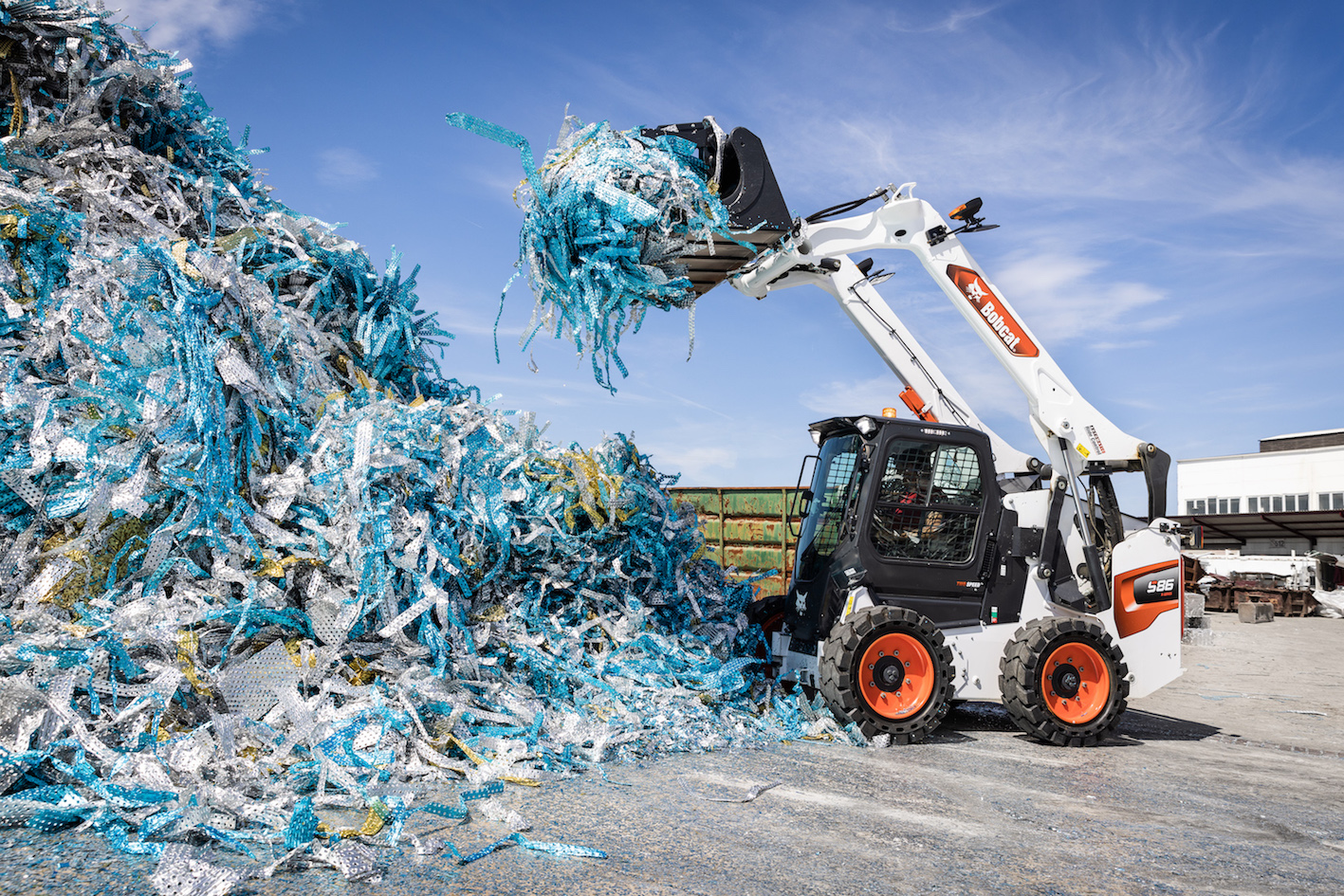

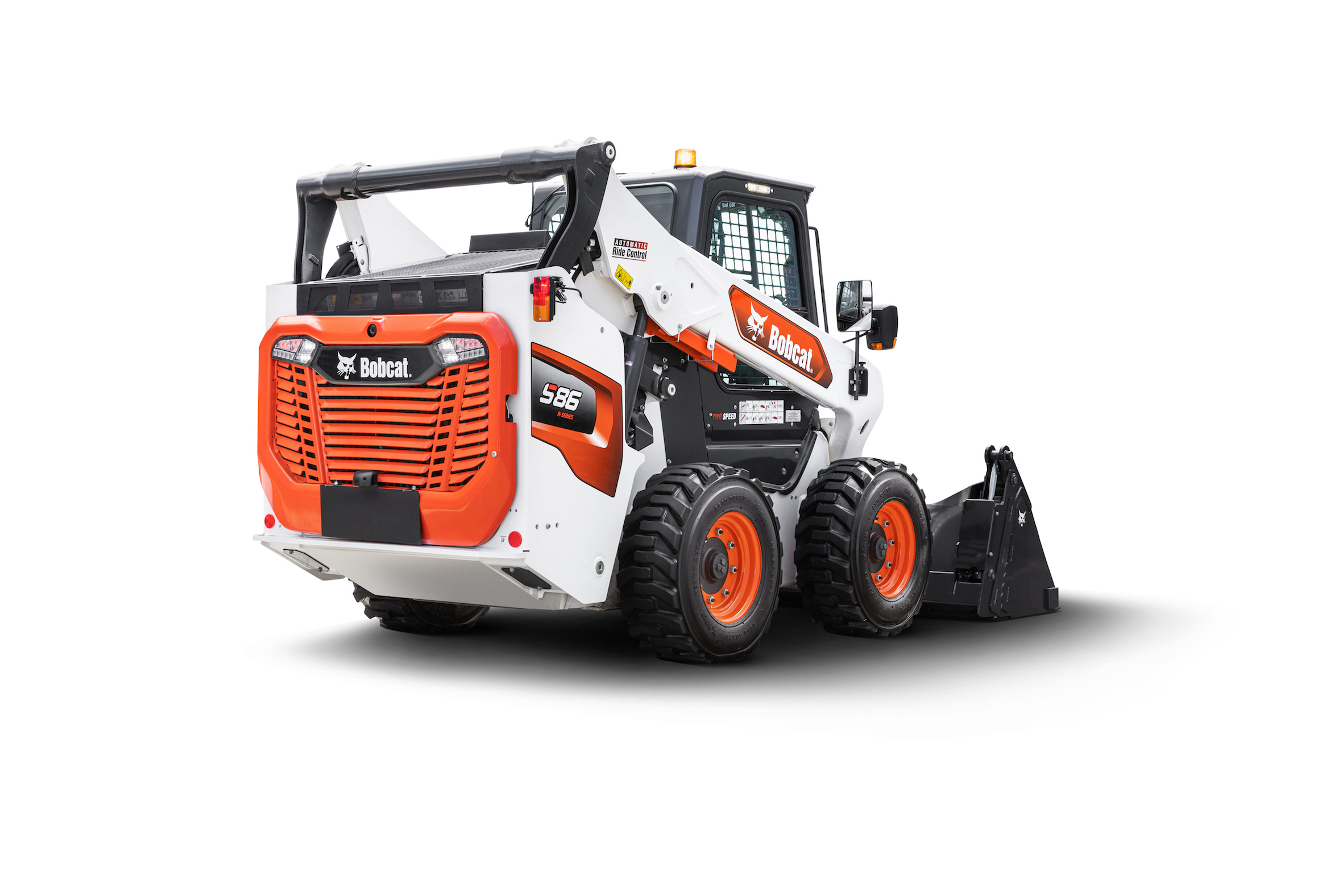

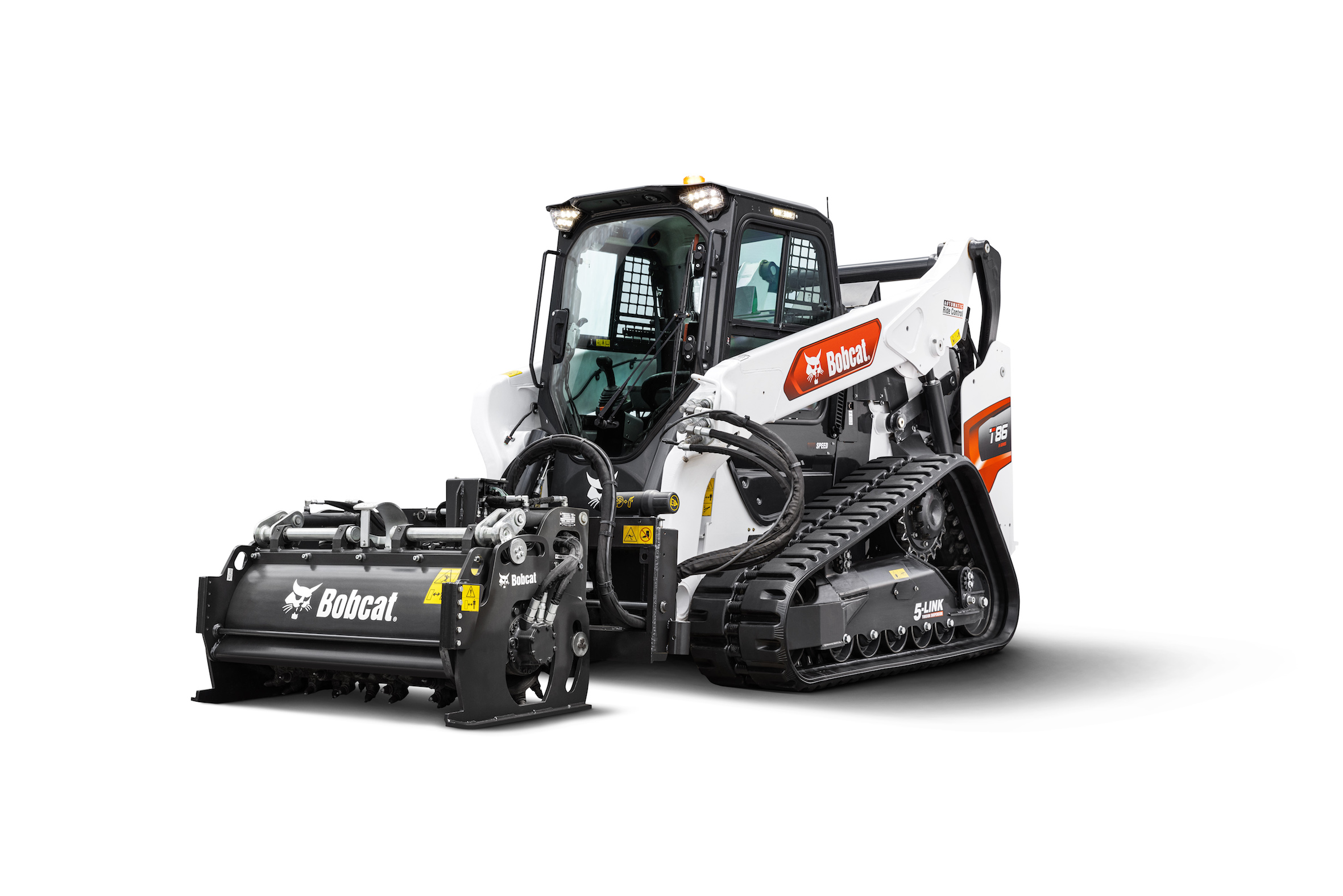

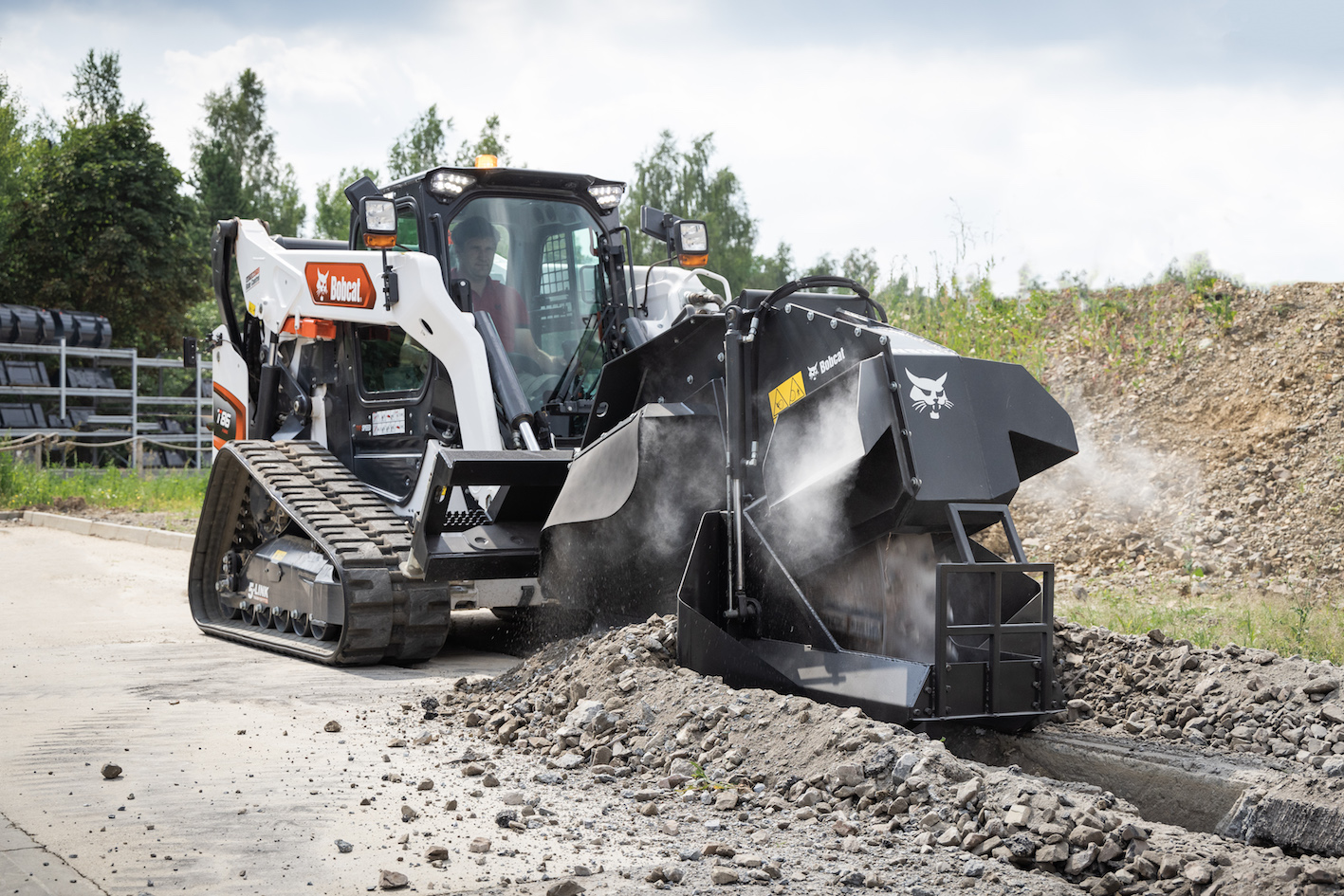

S86 and T86 compact loaders
Delivering a higher engine and hydraulic output, the Bobcat S86 and T86 are the most powerful compact loaders the company has ever built. Both machines use a well-proven, Stage 5-compliant 3.4-litre Bobcat engine producing 105hp (78kW) at 2,600rpm. Just like all R-Series loaders, the engine is mounted in-line with direct drive, which improves the cooling capacity of the engine and hydraulic components. This change increases reliability in high-intensity applications such as road construction and forestry work, says Bobcat.

One of the most exciting new aspects of the S86 and T86, reckons Bobcat, is that both machines have for the first time a choice of three different auxiliary flow outputs. There is a standard flow configuration providing 87L/min for applications such as load and carry, or where low hydraulic flow attachments are used. Bobcat also offers two additional hydraulic performance functions using the new Electronic Displacement Control (EDC) Pump: a High Flow function giving 138L/min and a new, industry unique Super Flow function taking auxiliary flow to 159L/min.

The Five Coupler Block (standard with the Super Flow option) provides a flexible approach to running different attachments. From one common source, the operator can attach both standard or high flow approved attachments to the smaller sized, half-inch quick couplers. Then when using Super Flow, the use of the three-quarter-inch couplers allows maximum performance and productivity from the approved advanced attachments.

Both High Flow and Super Flow options come integrated with Bobcat’s unique attachment control device (ACD). The S86 and T86 machines equipped with High Flow or Super Flow also have Power Bob-Tach Attachment systems as standard. The Power Bob-Tach is an added comfort and productivity feature that allows some attachments to be connected and removed without the operator leaving the seat, just using the switches conveniently located in the cab - it is optional on Standard Flow machines.

Increased lifting capabilities
The new S86 and T86 workgroup design increases the ability to lift more, carry more and reach further. This is achieved by a new workgroup geometry that improves lifting capability throughout the lift arm’s range of motion. When combined with the high hydraulic performance and the lighter and stronger cast-steel lift arm sections, the loaders offer higher capacity throughout the lift cycle – even at full height.

Along with the S66/T66 and S76/T76 models launched over the last two years, the S86/T86 set new industry standards for in-cab comfort, says Bobcat. This includes the low noise and vibration levels inside the one-piece sealed and pressurised cab, together with the intuitive SJC controls as standard, and the informative displays.

The cab also has an HVAC system as standard and increased operator visibility, which can be further enhanced with the innovative Clear Side cab option. With the latter, 75% of the side windows are mesh-free, ensuring an unobstructed view from the cab.

Bobcat has also added a rear-view camera as standard equipment to the list. In addition to the standard 5 inch in-cab display, Bobcat offers as an option, an advanced 7-inch display that provides even more detailed machine information and unprecedented device connectivity.

Key stats for the S86 include a rated operating capacity of 1,587kg, a tipping load of 3,175kg and an operating weight of 4,536kg. The T86, meanwhile, has an operating capacity of 1,780kg, a tipping load of 5,087kg and an operating weight of 5,643kg.
